Electrifying Your Inboard Propulsion

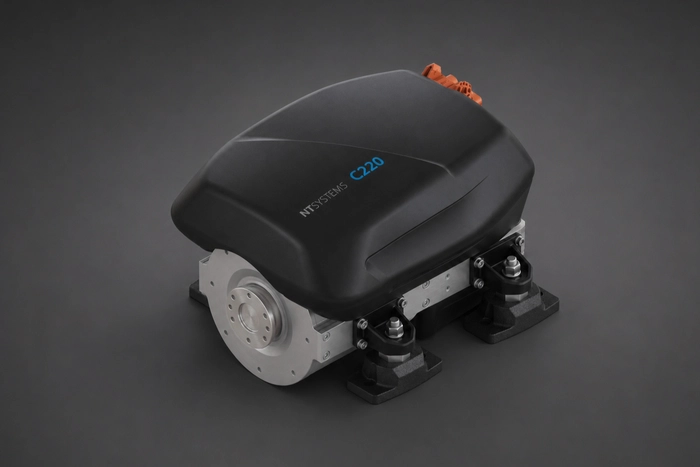

NT Systems is a compact turnkey electric propulsion system for commercial and leisure applications with a continuous power range from 40 kW up to 450 kW. Our electric propulsion systems are designed for easy service, require low maintenance, and can be installed on various drive units. The propulsion is designed in a way that requires only connecting the power supply, communication cables, and seawater for cooling, making it ready for operation.

Powerful

Compact and light

Plug&Play

Modular/Scalable

Why Choose NT Systems?

A key advantage of our systems: optimized operation for maximum efficiency. This is achieved through a combination of features and right-sized components: optimized cooling maintains a stable operating temperature, an in-house developed Electronic Control Unit (ECU) manages system's functions for optimal performance, and the pre-assembled, single-unit design minimizes installation time and ensures proper component configuration. Our systems are an ideal choice for applications where space and weight are critical factors, without compromising on performance.

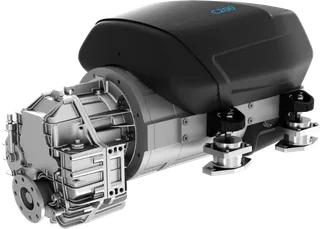

Direct Drive or Gearbox Version

Our systems feature a built-in thrust bearing, allowing for direct shaft mounting and use of the propulsion system in a direct drive configuration out of the box. This simplifies installation for applications where direct drive is preferred. Additionally, the systems are compatible with various marine gearboxes. Mounting a gearbox allows you to adjust the output RPM and torque to your specific needs.

In-Depth Look: Direct Drive and Gearbox Assemblies

Explore a detailed breakdown of the system's components and their assembly. You'll also gain insights into gearbox mounting.

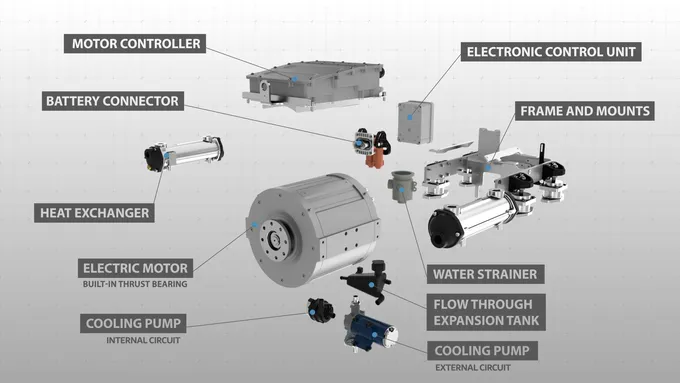

Pre-assembled propulsion unit includes:

Electric motor with built-in thrust bearing
Motor controller/inverter
Electronic control unit (ECU)
Electrical and water plugs
Cooling system: heat exchangers, pumps for inner and outer circle, water strainer, flow through expansion tank
Frame and engine mounts

Through this 3D animation, you'll discover:

360-degree view of the propulsion unit
Close-up views of key components
Component assembly (exploded view)
The Gearbox version, its components, and mounting

Multiple-motor Installations

The design supports multiple-motor installations and thus increasing the propulsion power, which expands modes of applications and usefulness. Stacking the systems to a quadruple set can easily provide 1800 kW (2400 HP) or more if necessary.

Technical specifications

	C40	C80	C120	C160	C200	C320	C450
Power [kW] (continuous)	40	80	120	160	200	320	450
Torque [Nm] (continuous)	128	257	398	530	660	1060	1580
Torque [Nm] (peak)	225	450	675	900	1130	1800	2680
Motor nominal speed [RPM]	3200
Battery [Vdc]	400			700
Total Length [mm] (assembled*)	550		665			915	1030
Total Weight [kg] (assembled*)	79	85	96	104	124	195	240

*Propulsion system is pre-assembled and includes: electric motor, motor controller, ECU, complete cooling system, electrical and water plugs, and engine mounts.

Download Datasheet

Projects

Electrifying the Classic Pedrazzini Wooden Boat

This project features the integration of the NT Systems C160 propulsion system and our top-mount throttle lever.

Learn more
